Low profile SMD Common Mode Chokes- W-Series

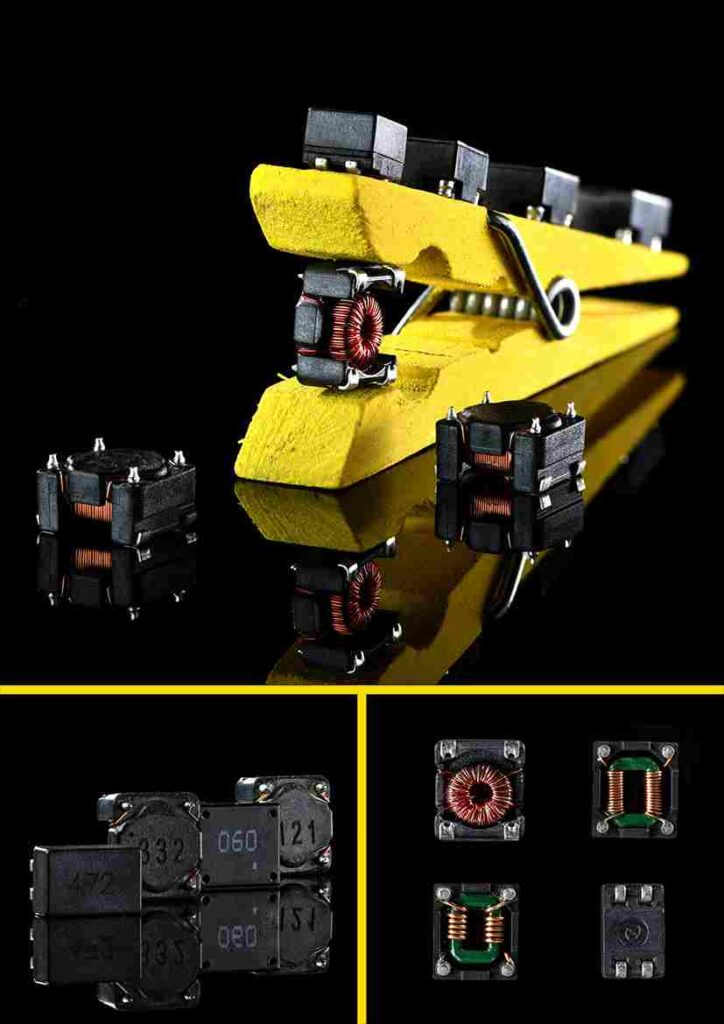

knitter-inductive implemented the new W-Series of low profile SMD Common Mode chokes for noise suppression on the market.
The Common Mode Chokes of the W-Series are available in four different mechanical sizes, from 6.5 x 3.6 x 2.0 mm up to 10.0 x 8.7 x 6.5mm. A high current carrying capacity up to 5.0 A is one of the key features of this series.
Two different winding styles of sectional and bifilar winding offer many options, such as very low differential mode attenuation or high isolation between the windings.
The main operating fields of the knitter-inductive Common Mode Choke W-Series are Signal and Data lines, as well as CAN Bus and SMPS applications. Additionally, the rated voltage of 80 V and operating frequencies from kHz to MHz make the CMCs suitable for many more application areas.
Series: | Size (mm): | Inductance: | Rated current: |
ICSCxxxxxxW1SHyST23 | 6.5 x 3.6 x 2.0 | 10 – 330 µH | 0.3 A |
ICSCxxxxxxW2SHyST22 | 9.2 x 6.0 x 5.0 | 10 – 6500 µH | 0.3 – 1.6 A |
ICSCxxxxxxW5SHAST12 | 9.5 x 8.3 x 5.0 | 5 – 30 µH | 1.4 – 5.0 A |
ICSCxxxxxxW5SHyST23 | 10 x 8.7 x 6.5 | 120 – 4700 µH | 0.35 – 2.5 A |
ICSCxxxxxxW6SHyST12 | 10 x 8.7 x 6.5 | 250 – 470 µH | 1.6 – 2.0 A |
The standard operation temperature range of the SMD Common Mode chokes W-Series is -40°C to +105°C / +125°C depending on mechanical size.
The Common Mode Chokes are packed in Tape&Reel for a cost efficient and fast assembling process on customer side.
