Low profile SMD Common Mode Chokes

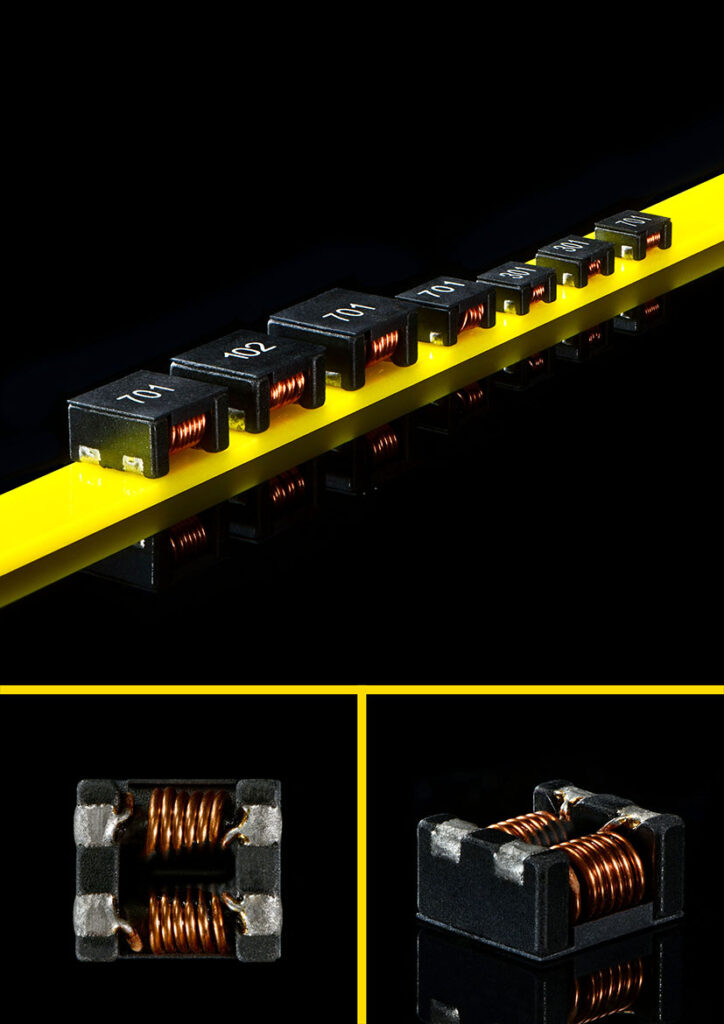

knitter-inductive implemented a Series of low profile SMD Common Mode chokes for interference suppression of data and signal lines.
The Common Mode Choke C-Series is available in four different mechanical sizes, from 7.0 x 6.0 x 3.8mm up to 15 x 13 x 6.5mm. The high current carrying capacity up to 13A is one of the key features of this series. High Impedance values of 2200 Ohm, 2700 Ohm and even 3000 Ohm in the smallest mechanical size fulfil the highest customer demand on the market.
The main application areas of the common mode choke C-Series are Signal and Data lines, as well as DC-DC convertors. Additionally, the rated voltage of 125V make the CMC suitable for many other application areas.
Series: | Size (mm): | Impedance: | Rated current: |
ICSCxxxxxxC1SHyT12 | 7.0 x 6.0 x 3.8 | 100 – 3000 Ohm | 0.9 – 9 A |
ICSCxxxxxxC2SHyT12 | 9.0 x 7.0 x 4.8 | 300 – 2700 Ohm | 2 – 6 A |
ICSCxxxxxxC3SHyT12 | 12 x 10.8 x 6.5 | 700 – 2700 Ohm | 1.5 – 8 A |
ICSCxxxxxxC4SHyT12 | 15 x 13 x 6.5 | 300 – 700 Ohm | 10 – 13 A |
The standard operation temperature range of the SMD Common Mode chokes C-Series is -40°C to +125°C.
The Common Mode Chokes are packed in Tape&Reel for a cost efficient and fast assembling process on customer side.
