New Series of Tiny SMD Power Inductors

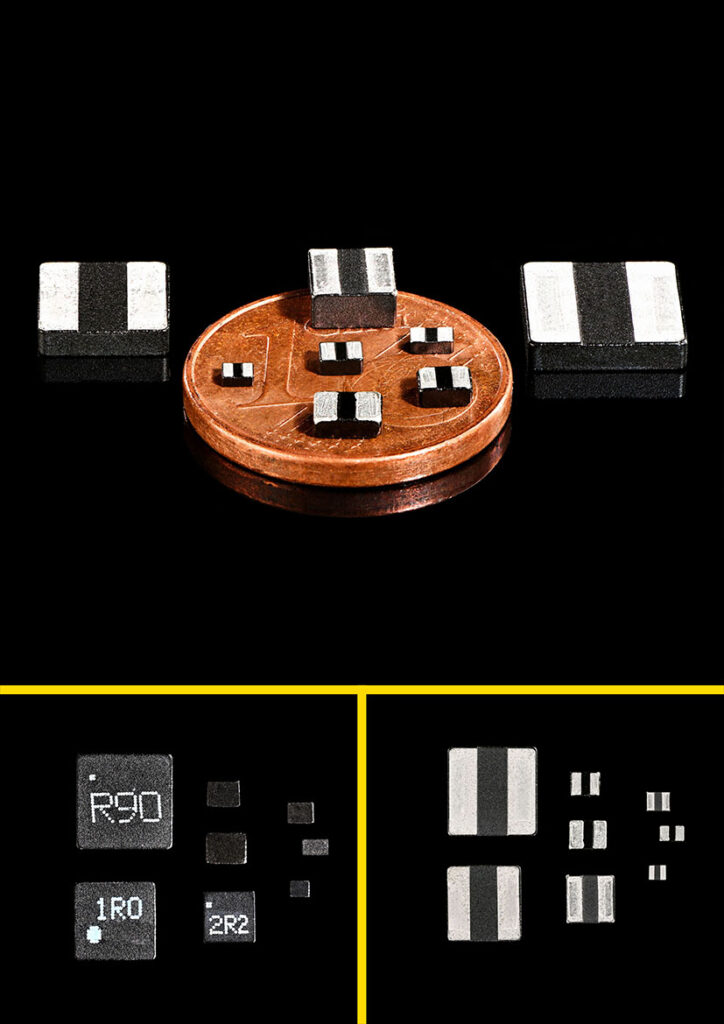

knitter-inductive implemented the new SMD Power Inductor T-Series, which offers a large saturation current at a very small physical size, on the market.

The new, magnetically fully shielded Inductors are mainly used for DC/DC convertors, voltage regulator modules, embedded PCs and switch mode power supplies.

knitter-inductive offers the inductor in many different physical sizes, from 1.6 x 0.8 x 0.8 mm up to 6.6 x 6.4 x 3.1 mm.

The new series is available from an inductance range of 0.10 µH to 10.0 µH, a saturation current range of 1.3 A up to 35.0 A and DCR values starting from 2.0 mΩ.

The new T-Series combines many benefits, such as the solid wire which is used for the inner winding and offers a high current and low DCR rating. Next to this the shielded design at a very compact base size that enables the use in a wide range of applications.

The operation temperature is rated from -40°C to +125°C.

The parts are standardly packed in Tape&Reel for a cost efficient and fast assembling process on customer side.

knitter-inductive Series	Size (mm)	Inductance range (µH)	Isat range (A)
ICSIxxxxxxT1SHyST12	1,6 * 0,8 * 0,8	0,22 – 2,20	1,30 – 5,00
ICSIxxxxxxT2SHyST12	2,0 * 1,2 * 0,8	0,33 – 2,20	2,30 – 4,80
ICSIxxxxxxT3SHyST12	2,0 * 1,6 * 0,8	0,22 – 4,70	1,50 – 5,60
ICSIxxxxxxT4SHyST12	2,0 * 1,6 * 1,0	0,33 – 4,70	2,00 – 7,00
ICSIxxxxxxT5SHyST12	2,5 * 2,0 * 1,0	0,47 – 4,70	2,00 – 6,50
ICSIxxxxxxT6SHyST12	2,5 * 2,0 * 1,2	0,10 – 10,00	1,45 – 11,00
ICSIxxxxxxT8SHyST12	3,2 * 2,5 * 1,2	0,24 – 6,80	2,40 – 10,50
ICSIxxxxxxTASHyST12	3,0 * 3,0 * 2,0	0,68 – 10,00	3,30 – 11,00
ICSIxxxxxxTCSHyST12	4,2 * 4,2 * 2,1	0,47 – 2,20	6,40 – 11,50
ICSIxxxxxxTDSHyST12	4,2 * 4,2 * 3,1	0,47 – 2,20	7,30 – 16,50
ICSIxxxxxxTGSHyST12	5,4 * 5,2 * 2,1	0,68 – 2,20	6,85 – 13,80
ICSIxxxxxxTHSHyST12	5,4 * 5,2 * 3,1	0,22 – 3,30	8,20 – 28,00
ICSIxxxxxxTKSHyST12	6,6 * 6,4 * 3,1	0,22 – 4,70	9,50 – 35,00
