New Series of Ferrite Beads

knitter-inductive introduced two new series of Multilayer Ferrite Chip Beads

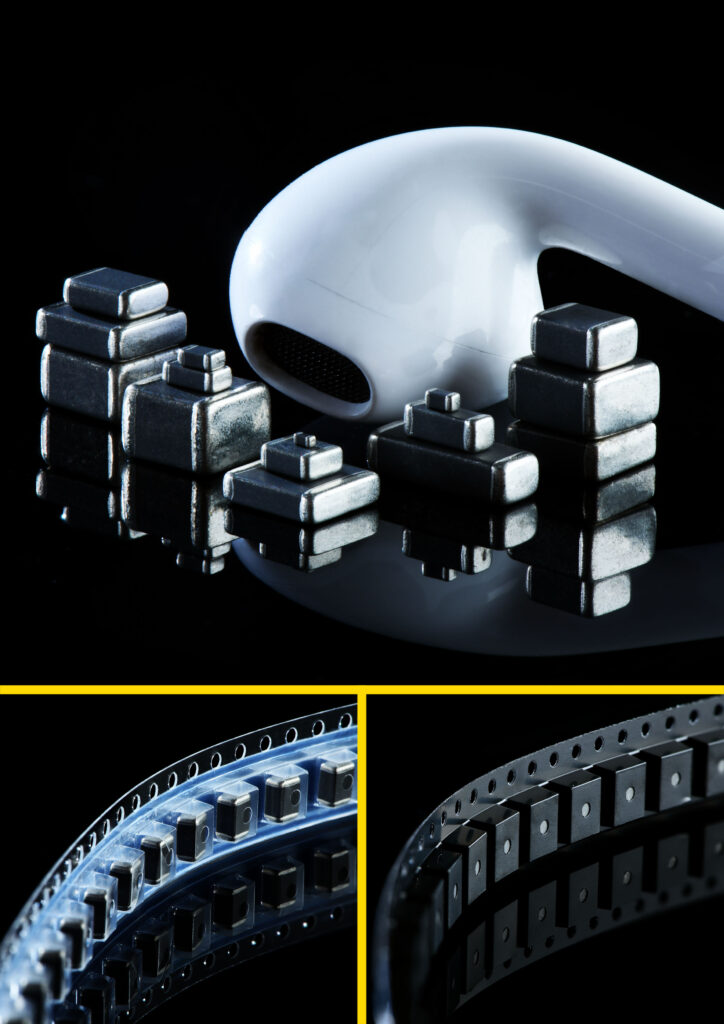

knitter-inductive introduced two new series of Multilayer Ferrite Chip Beads in their inductive portfolio. Due to the usage of different ferrite materials composites different electrical characteristics can be created at similar impedance values. The main application of these two series is noise suppression on signal and data lines which are used in all modern electrical devices and vehicles.

This new series contains of two sub series, a standard series (B-Series) and a high current Series (I-Series). For both series are all standard sizes like inch code 0402 / 0603 / 0805 / 1206 / 1210 / 1806 / 1812 available. For each of these sizes are several parts with different Impedance values and electrical characteristics as standard products on hand.

Both Series offers excellent physical properties, such as terminal strength, flexure strength and solderability. In addition to that the series requires less space on the PCB and offers a very high EMI suppression.

Tailor made and customized solutions are for feasible, too!

knitter-inductive Series	Inch Code	Impedance range (Ohm)	Rated current (mA)
ICSBxxxxxxI1SHyST22	0402	10 – 120	1000 – 2500
ICSBxxxxxxI2SHyST22	0603	5 – 600	1000 – 3000
ICSBxxxxxxI3SHyST22	0805	5 – 1000	1000 – 6000
ICSBxxxxxxI4SHyST22	1206	10 – 1000	1000 – 6000
ICSBxxxxxxI5SHyST22	1210	30 – 120	2500 – 3000
ICSBxxxxxxI6SHyST22	1806	60 – 470	2000 – 6000
ICSBxxxxxxI7SHyST22	1812	70 – 880	3000 – 6000

knitter-inductive Series overview with size, and rating

The operation temperature of -40°C to +125°C and the large variety of inductance values enable a huge field of applications.

The parts are standardly packed in Tape&Reel for a cost efficient and fast assembling process on customer side.
